SPATIAL CURVATURE

From Discrete Count Structure to Realized Geometry

In general relativity, gravitation is described geometrically. Matter and energy contribute to the curvature of spacetime, and freely falling bodies follow geodesic trajectories determined by that geometry. Measurement Quantization (MQ) approaches the same physical domain from a different starting point. Rather than taking a differentiable spacetime metric as the primitive description, MQ begins with discrete relational count structure and asks how measurable geometry is realized from it.

This distinction is important. MQ does not require the claim that space, in every meaningful sense, cannot be curved. The current framework makes a more precise statement. The fundamental measures define discrete relational structure, but that structure does not itself constitute observable continuum geometry. Observable geometry arises through the Frames mapping between the discrete Internal Frame and the realized continuum System Frame.

The result is a layered description of geometry. At the underlying level are discrete counts, their conserved relations, and the fundamental measures. Through the Frames mapping, those relations acquire realized physical separation. At the continuum level available to observation, the mapped separations provide the local metric structure from which conventional geometric quantities, including curvature, can subsequently be constructed.

The Fundamental Measures

MQ begins with three fundamental measures, length l_f, mass m_f, and time t_f. The invariant dimensionless MQ coefficient θ_si relates these quantities through the fundamental relation.

The fundamental measures are related to, but are not introduced merely as alternative names for, conventional Planck units. In MQ they participate in a count-based construction in which observable quantities depend on the relation between discrete Internal Frame structure and its realization in the System Frame.

Observable length is therefore not identified simply with a number of microscopic pieces of continuous space. A count such as n_L identifies discrete relational structure in the Internal Frame. Physical separation becomes observable when that structure is realized through the Frames mapping. The fundamental measures should therefore not be pictured as tiny rulers, clocks, or pieces of an already existing continuum spacetime. They establish invariant physical references from which measurable quantities are constructed.

For the broader treatment of the two frames and their physical roles, see Frames of Reference.

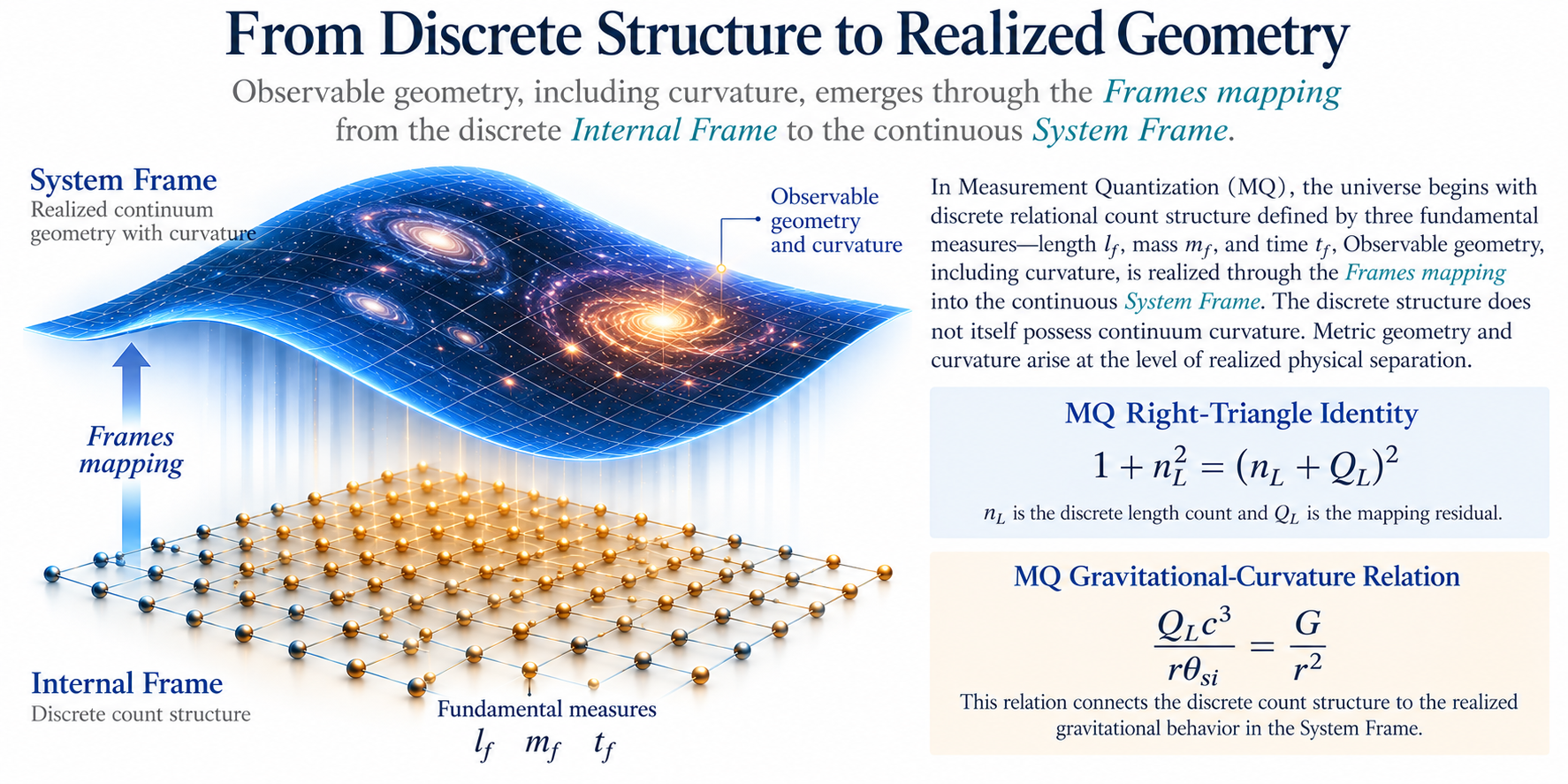

Two Frames, Two Descriptions

The distinction between the Internal Frame and the System Frame is central to MQ. The Internal Frame is the discrete, count-resolved description. It contains relational count structure but does not begin with a continuous spatial manifold carrying a predefined metric. The System Frame is the realized continuum description in which physical observables such as distance, velocity, acceleration, and field quantities are expressed.

The Frames mapping connects these descriptions. Observable geometry therefore need not be imposed on the underlying count structure. Instead, conserved discrete relations are realized as measurable separations in the System Frame.

The underlying geometric construction is represented by the MQ right-triangle identity. Here n_L is the discrete length count and Q_L is the positive mapping residual associated with that count.

The realized count is $n_L+Q_L$. Solving the identity gives $Q_L=\sqrt{1+n_L^2}-n_L$. As n_L increases, Q_L becomes progressively smaller while remaining part of the realization relation. The residual is therefore a geometric consequence of the mapping between the two frames rather than an independently fitted correction.

Gravitational Curvature

MQ uses the same count construction to obtain its primitive gravitational-curvature relation. Before introducing the continuum radial coordinate, the count-resolved scalar acceleration is $\frac{Q_L{l}_f}{n_L{t}_f^2}$. This is a count-resolved scalar gravitational-curvature measure. It is not, by itself, the tensorial curvature of continuum spacetime used in general relativity.

Let c denote the speed of light, r the realized radial separation, and G the finite-count gravitational measure in the same realization regime. Using $c=\frac{l_f}{t_f}$ and $r=n_L{l}_f$, the canonical MQ gravitational relation is

The two sides are evaluated within the same realization regime. The relation connects the count-resolved MQ construction to the familiar inverse-square gravitational acceleration without requiring the count structure itself to begin as a curved continuum manifold.

At the upper count limit, $Q_L{n}_L=\frac{1}{2}$. The same construction then gives $\frac{c^3}{\mathrm{G}}=\frac{2{\theta }_{si}}{l_f}$, where the upright $\mathrm{G}$ denotes the upper-count-limit constant rather than a finite-count measure.

From Realized Separation to a Metric

The distinction between primitive count structure and continuum curvature becomes clearer once realized separation is considered.

The underlying count structure therefore does not require a predefined metric in order to establish physical relations. Instead, the local System Frame metric is reconstructed from the realized mapped-separation structure.

This also imposes an important limitation. Deriving a local separation relation does not, by itself, specify a unique global spacetime. A local metric reconstruction does not automatically determine a complete global geometry, metric signature, boundary conditions, or curvature field. Those require additional structure.

Within the current MQ formulation, the continuum description is developed further through the MQ variational principle. At that level, the conventional machinery of differential geometry becomes applicable, including the metric connection, Riemann curvature, Ricci curvature, scalar curvature, the Einstein tensor, the Bianchi identity, and covariant conservation.

What, Then, Is Curved?

This distinction provides a more precise answer than the older assertion that discrete physical measure and spatial curvature are necessarily incompatible.

If "space" refers to the primitive structure represented by the fundamental measures and discrete counts of the Internal Frame, assigning ordinary continuum curvature directly to that structure would conflate two different levels of description. The fundamental measures establish discrete relational references. They are not infinitesimal pieces of an already existing curved manifold.

If "space" instead refers to the realized continuum geometry of the System Frame, curvature can be physically meaningful. In that description, the metric and its curvature characterize relations among realized physical observables.

The fundamental distinction is therefore not simply between curved and uncurved space. It is between primitive discrete count structure and realized continuum geometry. In a conventional continuum description, measured separation is expressed through an existing metric. MQ instead asks whether the measurable separation from which a metric can be constructed may itself be derived from more primitive relational information. Its answer is the Frames mapping.

Curvature and Gravitation

The same mapping residual Q_L that contributes to realized separation also enters the MQ gravitational-curvature relation. Measurable geometry and gravitational behavior therefore arise from a common count-resolved construction within the framework.

That mathematical relationship does not, by itself, establish every gravitational or cosmological consequence of MQ. The primitive scalar count relation, reconstructed continuum metric, and observational predictions are distinct levels of the theory and require tests appropriate to each.

One such test is provided by galactic rotation. The present MQ realization law has been applied without galaxy-specific MQ fitting parameters to both the Milky Way and the complete published SPARC catalog.

For the principal RAR/MOND-independent Milky Way test, the observational comparison uses 38 Eilers circular-velocity measurements spanning 5.27-24.82 kpc, while the baryonic source is reconstructed independently from the McMillan Galactic model with its dark-halo contribution removed. Across that range, the baryonic Newtonian curve has an RMS residual of 69.03 km s^-1, while the fixed MQ realization gives an RMS residual of 8.90 km s^-1. The reduction is 87.1 percent. No Milky-Way-specific MQ acceleration scale or rotation-curve fitting parameter is introduced.

The population test applies the same realization law to all 175 published SPARC galaxies and 3,366 radial measurements before observational-quality stratification. Across those measurements, the point-weighted mean signed residual is +0.02644 km s^-1, while the pooled RMS and mean absolute error are 22.82 km s^-1 and 16.20 km s^-1, respectively. The near-zero aggregate bias should not be interpreted as point-by-point agreement at the same fractional precision. The measurements are also nested within galaxies and are not 3,366 statistically independent systems.

For the detailed galactic treatment, see Dark Matter.

A Different Starting Point for Geometry

General relativity begins with continuum spacetime geometry and describes gravitation through the dynamics of that geometry. MQ begins with discrete relational count structure and attempts to derive the measurable separation from which continuum geometry can subsequently be constructed.

The two descriptions therefore should not be contrasted merely by saying that one permits curved space and the other does not. The more precise distinction is that curvature is not primitive in MQ.

The fundamental measures establish discrete relational structure. The Internal Frame preserves that count structure. The Frames mapping realizes it as observable separation in the System Frame. A local metric can then be reconstructed from those realized relations, after which curvature becomes meaningful as a property of the continuum geometry.

The physical question posed by MQ is therefore not simply whether space is curved. It is whether the measurable geometry to which curvature is assigned can itself arise from a more fundamental discrete relational structure. Measurement Quantization proposes that it can.

For the earlier development of this argument, see the Spatial Curvature preprint.
